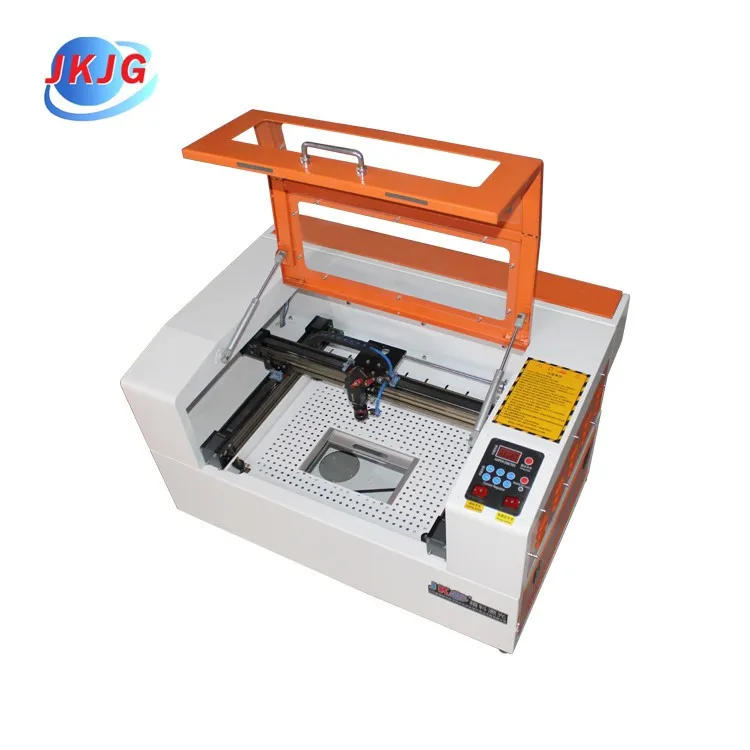

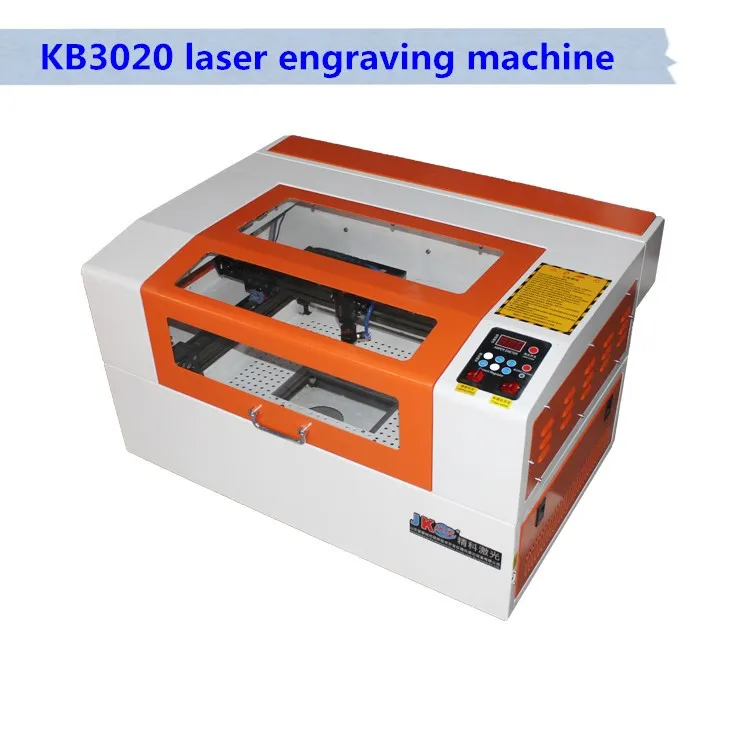

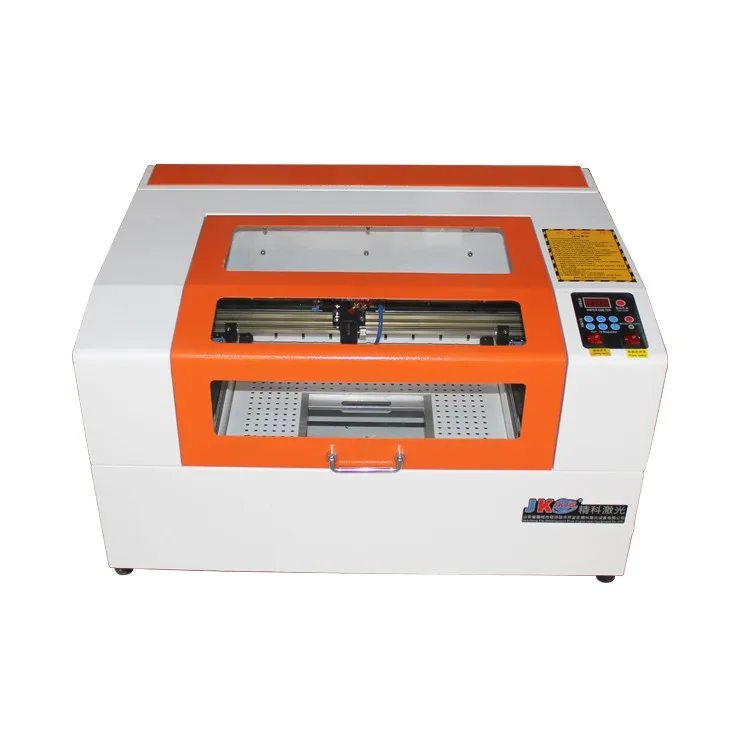

JK-KB3020 40W Mini CO2 CNC laser engraving cutting machine

FOB Reference Price:Get Latest Price
$500.00 - $1,200.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
40W 50W
Model Number:
KB-3020
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 2 3 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
body color (Min. Order: 5 Sets)
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Field maintenance and repair service
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Engraving Speed:
0---1000mm/s
Graphic Format Supported:
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Application:
Laser Engraving
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Engraving Area:
300mm*200mm
Condition:
New
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
China
Brand Name:
JINGKE
Dimension(L*W*H):
940*600*710mm
Certification:
CE, ISO, GS, SGS, UL, CCC
Warranty:
2 Years
Laser Source Brand:
Lianpin
Laser Head Brand:
huitian
Guiderail Brand:
PMI
Control System Brand:
ruida/awc
Laser power:
40W/50W
Product name:
KB-3020 laser engraving cutter machine
Laser tube:
Sealed CO2 Glass Tube
Power Supply:
220V/50HZ 110V/60HZ
Driving system:
High-precision 3-phase Stepper Motor
After-sales Service Provided::
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden box or according to your requirements
Port
QingDao, Shanghai, Ningbo, Shenzhen, Guangzhou, or according to your requirements
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 2 3 To be negotiated
Product Description

1. Perfect Design

-- Convenient to put and work

-- Unlimited feeding expansion

2. Up-down Wroking Table

-- Very stable

-- Never rust

-- Strong load capacity

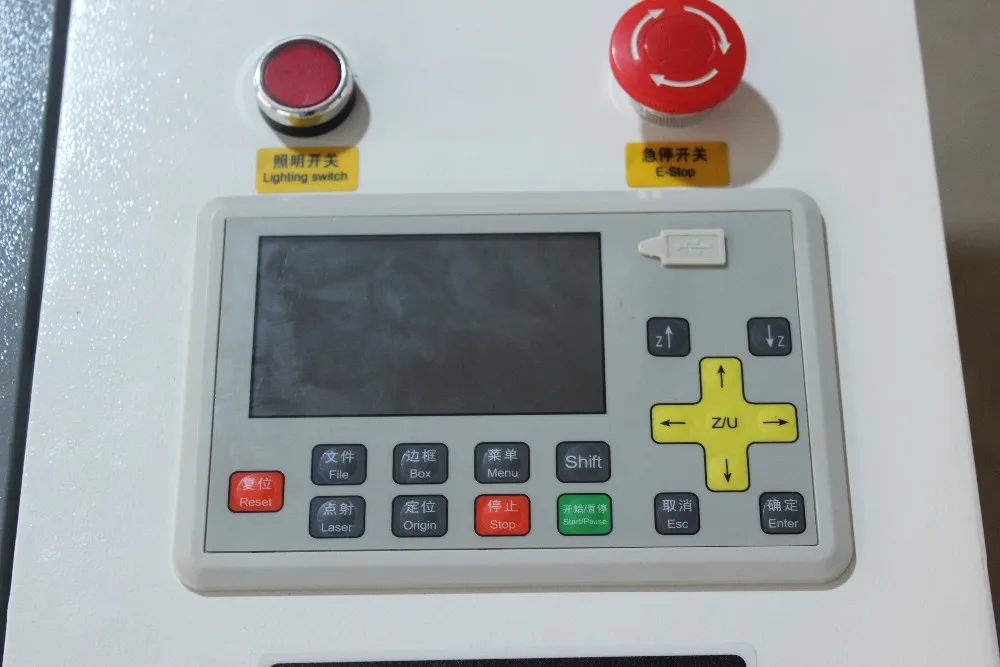

3. Control Panel

-- Display work process clearly

-- Convenient to operate and view

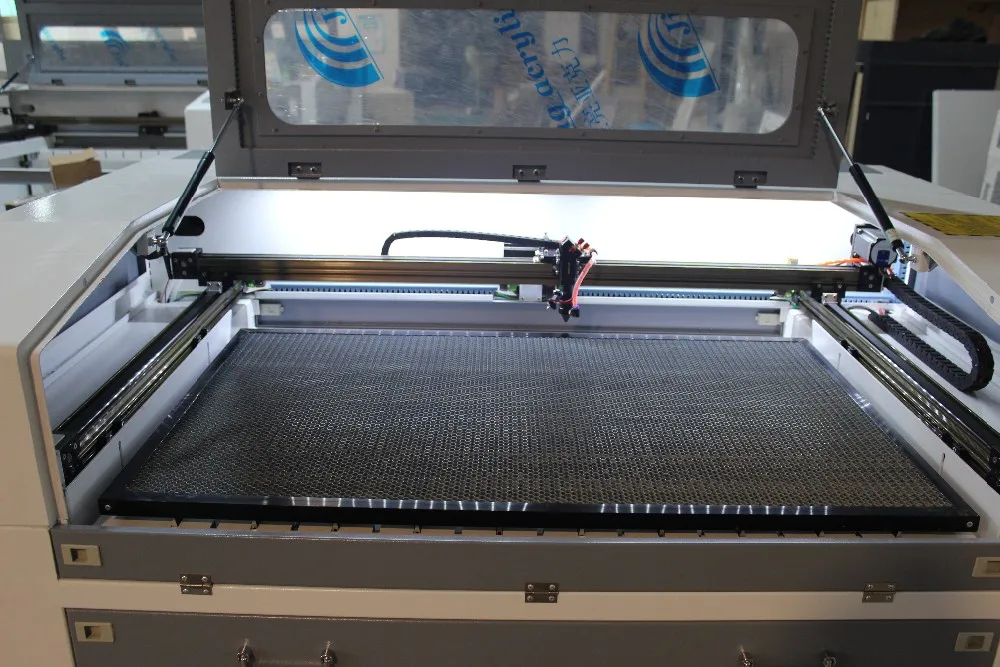

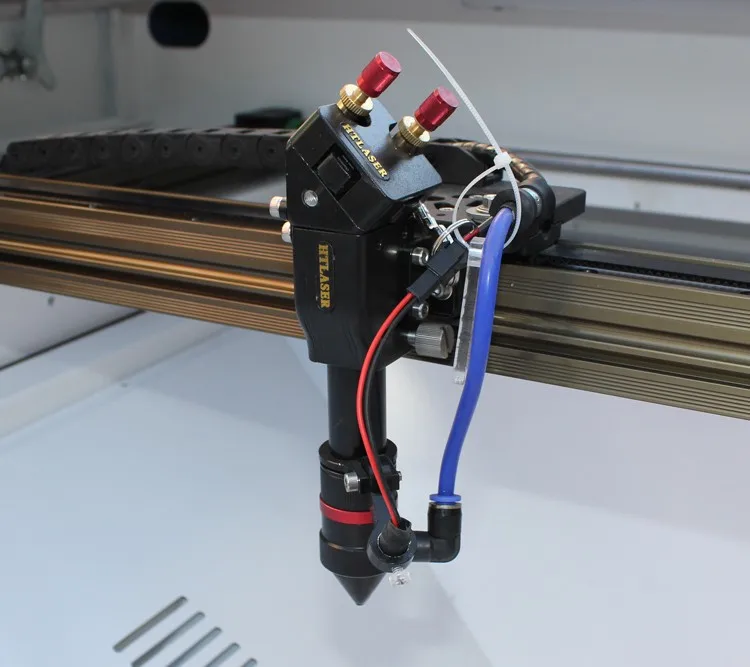

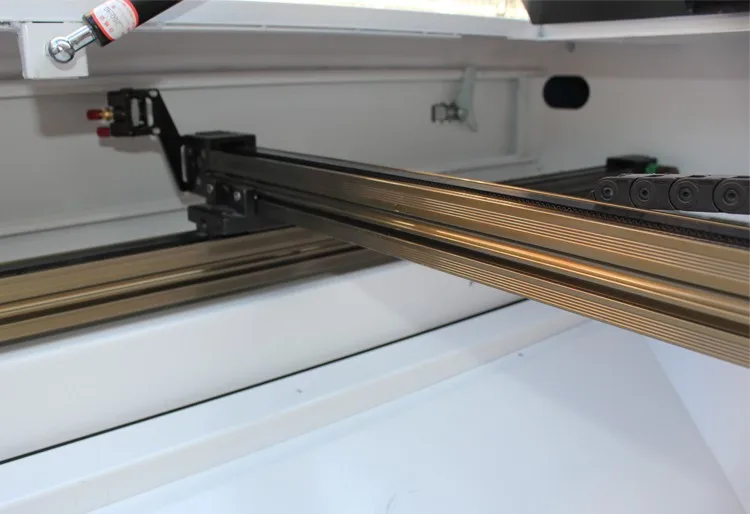

4.X-Y Plotter

-- Taiwanese brand linear guideway
-- High-speed and high-precision
-- Strong load capacity and rigidity

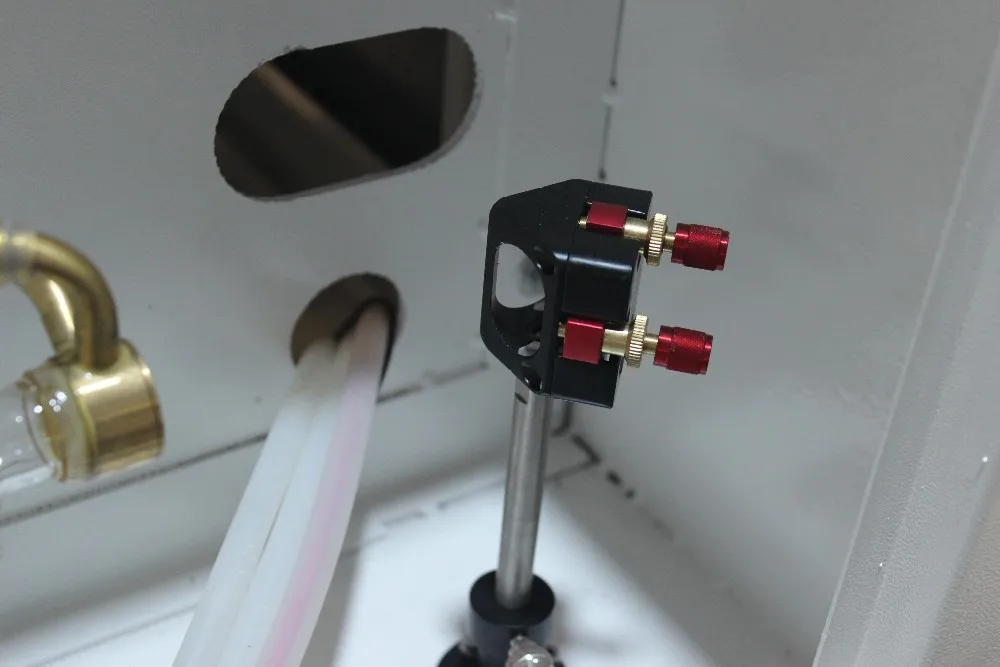

5. 45° Mirror Adjustment Set

-- Easy to adjust laser path

6. Stepper Motor

-- High torque

-- Low heat

-- Low running noise

-- Stable operation

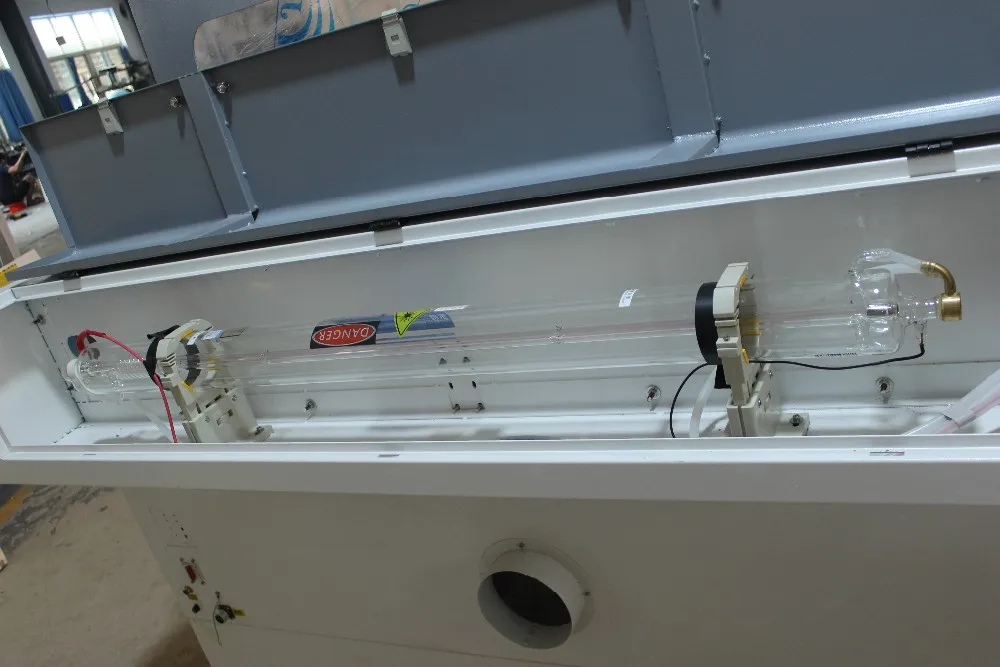

7. Sealed-off CO2 Laser Tube

-- Longer service life

-- More steady

-- Higher efficiency

8. LED Light

-- Energy-saving

-- Brighter

-- Long life time

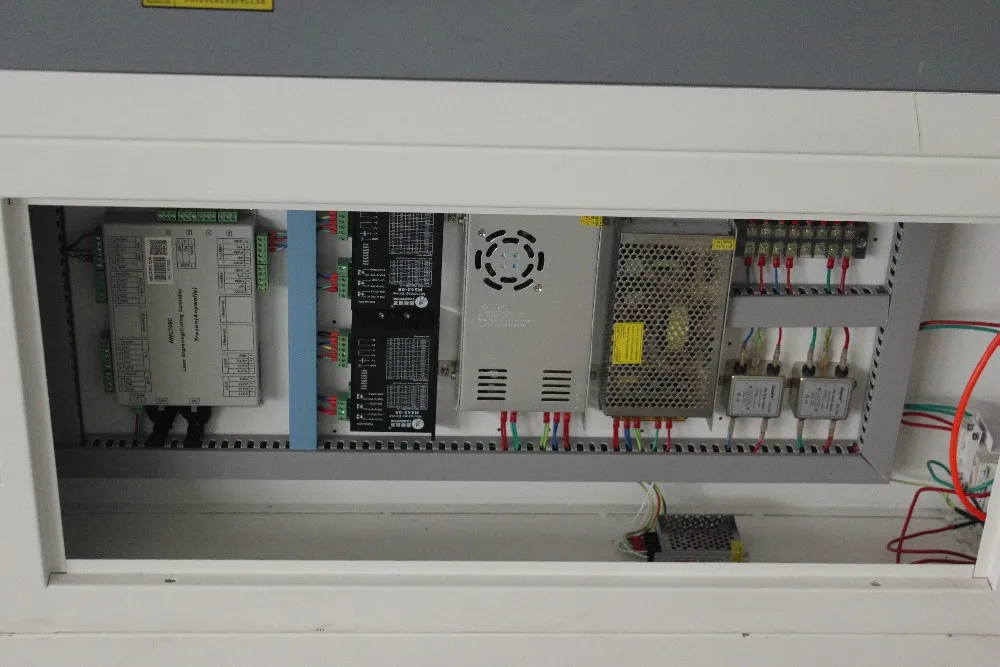

9. Stepper Motor Driver

-- Low speed smooth operation, no step size

-- Excellent high-speed performance

-- Self-adjustment technology, providing optimal performance with different motors

10. Button and Lock

-- High end

-- Zero maintenance

16. Fittings

1. CD 2. Instruction Manual 3. Cable 4. Power Cord 5. Air Pump 6. Water Pump and Tank 7. Suction Fan 8. Pipe

Optional Devices
Technical Parameters
Product
3020 Laser Engraving Cutting Machine
Laser Type
Sealed-off CO2 Laser Tube
Laser Power
40W50W
Engraving Area (L*W)
300*200mm
Engraving Speed
0-60000mm/min
Engraving Thickness
0-20mm
Cutting Area
30*200mm
Cutting Speed
0-60000mm/min
Cutting Thickness
0-30mm
Repeated Positioning Accuracy
±0.01mm
Working Voltage
AC 110-220V ± 10%, 50-60HZ
Working Temperature
0-45°C
Working Humidity
5-95%
Minimum Character
1mm
Lifting Working Table Type
Standard: blade
Optional: honeycomb
Lifting Range
0-300mm
Guideway
Linear Guideway
Motor
 57 Stepper Motor
Drive Mode
Digital Subdivision Stepper Drive
Positioning Mode
Red Light
Compatible Software
CorelDraw, AutoCAD, Photoshop, Laser CAD, etc
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, Plastic, Plexiglas, Plywood, Rubber, Wood, etc
Cooling Mode
Water Cooling
Auxiliary Device
Exhaust Fan and Exhaust Pipe
Control Software
DSP
CNC Yes or Not
Yes
Interface
USB 2.0
Size (L*W*H)
940*600*710mm
Weight
55KG
Optional Device
Water-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine
Samples Show
Packing & Delivery


Get Price or Contact Us

Our Service

1) Free samples engraving and cutting.
2) Two years warranty.
3) Free technical training.

4) Installation and commission support.

5) 24 hours on-line service.

6) Telephone service.

7) Prompt delivery.

8) English version user manual and operation video.
